Looking Forward: Fiber Optic Data Transfer Technology

Did you know a single hair-thin strand can now carry more than 100 Tbps of information each second? That capacity could handle streaming 12 million HD films at once—a leap from the 1950s, when scientists first harnessed light to send basic signals.

• Data speeds a hundredfold greater than legacy copper cables
• Zero interference from power lines or radio signals
• Ability to handle 5G infrastructure and 8K video

Feature	Copper Wiring	Optical Fibers
Data Rate	10 Gbps max	Exceeding 100 Tbps
Range	Approximately 100 m	70+ kilometers
Security	Easily tapped	Highly resistant to eavesdropping

Light pulses bounce through glass cores using total internal reflection, similar to a laser light bouncing in a mirrored corridor. This optical principle avoids data loss across vast spans. As video calls and smart devices multiply, these cables keep networks from collapsing under data weight – FTTH cable production line.

The Development Path of Fiber Optic Communications

Years of research turned the concept of optical data transmission into a working technology. Scientists in the 1950s found glass fibers can channel light—a concept that reshaped modern connectivity.

Pioneers and Initial Trials

In 1952, Narinder Singh Kapany demonstrated that light could propagate through curved glass fibers. He named the field “fiber optics,” establishing the basis for modern fiber networks. Together with Harold Hopkins, he created pliable imaging bundles, which became prototypes for data-carrying fibers.

By the 1960s, laboratory trials showed these fibers had real-world applications. Although initial implementations suffered loss, ongoing experiments improved their efficiency. Researchers found that ultra-purified glass cores extend signal reach with minimal distortion.

Milestones in Fiber Development

In the 1970s, the first commercial deployments revolutionized the industry. Telephone companies adopted cables that replaced copper lines, boosting call clarity and capacity. In 1970, Corning Glass Works introduced low-attenuation fiber capable of 65 km spans.

Date	Achievement	Impact
1977	Initial live telephone transmissions	Proved real-world reliability
1988	Launch of TAT-8 transatlantic link	Connected continents
1990s	Erbium-doped amplifiers	Allowed extensive long-haul connections

Modern advancements focus on speed and scalability. Dense wavelength-division multiplexing (DWDM) now lets single strands carry multiple data streams simultaneously. These leaps bridge lab experiments to the backbone of global communication systems.

Basic Principles of Fiber Optic Data Transfer

Light travels faster than anything else—so why not use it to send messages?. This straightforward concept underpins contemporary networks. Instead of slow electrons in copper wires, engineers use photons to zip data across continents. Here’s how it works.

Photon-Based vs. Electron-Based Signaling

Optical signals transmit data more effectively than electrical currents. Photons:

• Move at 186,000 miles per second (99.7% light speed)
• Generate no heat or EMI
• Support simultaneous multi-wavelength channels

Factor	Electron Signaling (Copper)	Photons (Glass)
Speed	Up to 10 Gbps	Over 100 Tbps
Noise Susceptibility	Affected by power lines	Unaffected by EMI
Energy Use	High	Low

Total Internal Reflection in Fiber Cores

Photons remain confined within the fiber’s core by total internal reflection. The core has a higher refractive index than the surrounding cladding. When light hits the boundary at a steep angle, it bounces back like a mirror, staying on course for miles.

Such a design minimizes attenuation. Over extensive spans, nearly 95% of photons arrive intact. Combined with laser precision, it ensures your video calls stay crisp and your downloads finish fast.

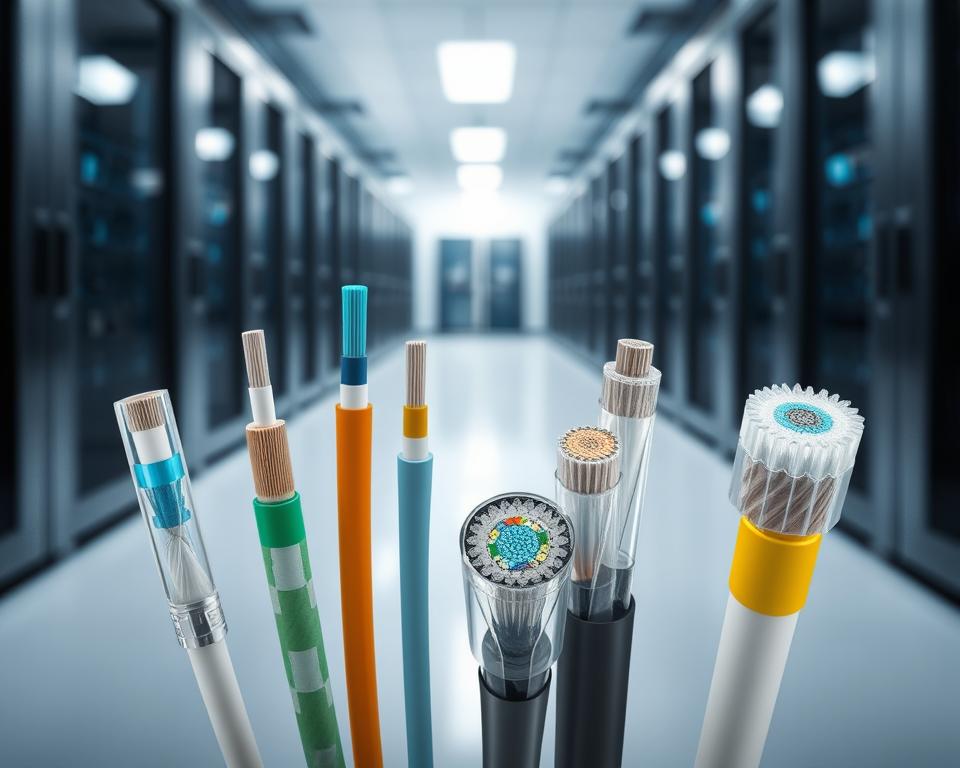

Different Types of Fiber Optic Cables

Not all glass strands are created equal. The right cable type depends on how far your data needs to travel and how much information you’re sending. Below are the two primary classifications and their distinct features.

Feature	Single-Mode	MMF
Core Diameter	9 µm	50–62.5 µm
Throughput	>100 GHz	~35–500 MHz
Max Distance	~120 mi	~1,600 ft
Typical Applications	Long-haul telephony	Data centers

Medical centers deploy single-mode links to move MRI scans across campuses. Schools often pick multi-mode for classroom networks—it handles video streams without breaking budgets. Both types keep our world connected, just in different ways.

Fiber Optic Cable Construction and Key Components

Curious how connectivity persists despite storms? This is due to advanced cable engineering. Multilayer structures shield information as it moves at near-light velocity.

Core, Cladding, and Coating Layers

At the heart of every cable sits the glass core—thinner than a human hair. This pure glass guides photons via total internal reflection. The cladding layer, with a lower refractive index, reflects stray light back into the core.

A protective acrylate coating wraps these layers. This ~250 µm barrier safeguards against physical abrasions and water ingress. Collectively, these layers create the optical conduit for data.

Armoring and Outer Protection

Real-world durability comes from Kevlar® strands around the coated core. Aramid strands handle pulling forces to avoid fiber breakage. A PE jacket atop resists environmental hazards, chemicals, and rodent gnawing.

Component	Material	Purpose
Core	Pure silica glass	Light transmission
Cladding	Doped silica	Signal containment
Polymer Layer	Acrylate polymer	Physical protection
Jacket	Polyethylene	Environmental shield

Color coding matters too—orange jackets denote multi-mode cables, while yellow marks single-mode versions. This simple system helps technicians quickly identify cable types during installations or repairs.

Working Principles Behind Data Transmission

What enables near-light-speed data transfer with minimal loss? The answer lies in converting electrical signals into precise flashes of light. Flashes map bits (1s) and dark intervals (0s), forming an optical binary stream deciphered by lasers.

Photon-Based Signaling

Lasers emit ~500 million pulses/sec through fiber cores. By using QAM-16, four bits encode per pulse, multiplying throughput – Fiber cable sheathing line. Such optical signaling is virtually immune to EMI that plagues copper lines.

Handling Signal Dispersion and Attenuation

Two main challenges disrupt flawless transmission:

• Chromatic dispersion: Various wavelengths travel at dissimilar velocities.
• Mode dispersion: Multiple ray paths diverge in multi-mode fibers.

Today’s fibers address these with these solutions:

Remedy	Outcome	Gain
Doped glass cores	Equalizes propagation speeds	~40% reduction in pulse broadening
Digital signal processors	Real-time error correction	99.999% accuracy

Signal loss drops to 0.15 dB/km in premium cables—a 92% reduction from early designs. Paired with EMI-resistant layers, they preserve signal fidelity worldwide. The result? Your video call to Tokyo stays crystal clear, even during a thunderstorm.

Sophisticated Fiber Networking Techniques

How do video streams remain stable amid storms? It involves connectors and installation practices that underpin contemporary communications. Such gear guarantees uninterrupted data transfer regionally and globally.

Connectors and Splicing Techniques

Robust networks begin with correct fiber terminations. SC connectors snap into place with push-pull ease, while LC types save space in crowded server racks. MPO/MTP assemblies group fibers for bulk connections, ideal for hyperscale facilities.

Two splicing methods dominate the field:

• Fusion splicing: Joins fiber ends by fusing, achieving minimal insertion loss.
• Mechanical jointing: Uses alignment sleeves for fast, reusable splices.

Connector	Best For	Insertion Loss
SC	Enterprise networks	~0.25 dB
LC	Dense patch panels	0.20 dB
MPO	Data center interconnects	0.35 dB

Modern Network Integration

Modern designs require adaptable deployment methods. Micro-duct systems permit cable blowing; armored jackets resist severe environments. Municipal implementations route fiber to traffic systems and surveillance, enabling intelligent networks.

Telecom operators roll out hybrid assemblies, merging electrical and optical conductors. Such designs feed 5G small cells and IoT sensors alike, showcasing agile network evolution.

Bandwidth and Throughput Advantages

Imagine data as water in pipes: larger pipes yield greater flow. This bandwidth principle underlies the shift to fiber optics. While copper resembles a garden hose, fiber performs like a high-capacity firehose.

• Photons moving at ~186,000 mi/s
• Multiple data streams via wavelength multiplexing
• Error correction reducing resend requests by 80%

Time Period	Peak Throughput	Price per Gigabyte
1980s	45 Mbps	Approximately \$1,200
2000s	~10 Gbps	$0.12
2020s	~178 Tbps	~\$0.0004

Throughput dictates online performance. Video calls require ~5 Mbps each; VR needs ~50 Mbps. As NEC’s 2023 report shows, networks using glass cables support 40x more users than copper alternatives at half the energy cost.

“Every dollar invested in high-capacity networks yields $3.80 in economic growth through improved productivity.”| “Each \$1 poured into high-bandwidth infrastructure returns \$3.80 in productivity gains.”

Performance improvements also slash operational costs. Signals travel 60 miles without repeaters versus copper’s 3,000-foot limit. This efficiency enables 8K video streaming, real-time AI processing, and seamless cloud backups—all while keeping your monthly bill under $100.

Mitigating Noise & Attenuation

Ever tried making a call during a thunderstorm only to hear static Copper wiring falters when EMI spikes. But glass-based systems laugh it off. These cables use light instead of electricity, making them immune to electromagnetic noise from power lines, radios, or even lightning strikes.

Inherent EMI Immunity

While copper acts as an antenna, fiber is non-conductive. Hence, optical networks remain unaffected by external interference. A 2023 study found 92% fewer data errors in industrial settings when using light-based systems compared to older methods – Fiber draw tower.

Engineers combat signal loss through three key strategies:

• Ultra-pure glass cores reduce light scattering
• Accurate laser coupling decreases insertion loss
• Protective coatings prevent moisture damage

Factor	CM	Fiber
Noise Susceptibility	Significant	Negligible
Signal Loss per Mile	~3 dB/mi	0.2 dB
Maintenance Needs	Monthly checks	Annual inspections

“Our factory’s error rates dropped 80% after switching to light-based networks—no more machine downtime from radio interference.”| “After switching to fiber, error rates fell by 80%, eliminating downtime from RF noise.”

These cables thrive where others fail. Undersea lines resist seawater attack; desert runs survive sandstorms. Boasting ~99.995% reliability, they power essential infrastructures globally.

Fiber’s Role in Telecom & Internet Services

How does your Netflix show arrive instantly from across the globe Fiber networks serve as the neural pathways of today’s Internet. These systems power everything from streaming services to stock market trades, using light to bridge continents.

Long-Distance & Metropolitan Fiber Deployment

Transcontinental cables stretch over 750,000 miles under oceans, carrying 99% of global internet traffic. In cities, metro networks link cell towers and offices using hair-thin strands. Transmitters convert electrical signals to light pulses, while receivers decode them at destinations.

Feature	Copper Networks	Fiber Infrastructure
Speed	1 Gbps	100 Tbps
Lag	~5 ms per km	0.005 ms/km
Uptime	~99.9%	~99.995%

Data Center & Cable Television Uses

Data centers rely on these cables for inter-rack communication, moving petabytes daily. Cable networks use hybrid optical/coax infrastructure to stream 4K. Verizon’s 2023 upgrade cut buffering complaints by 73% in urban areas.

Three economic benefits drive adoption:

• Maintenance costs ~60% lower than copper systems
• Scalability to handle 5G demands
• Energy consumption ~40% less per data volume

From Wall Street to undersea cables, fiber networks demonstrate that high speed and stability go hand in hand. In the words of an engineer: “Nothing outpaces light when transferring vast datasets.”

Next-Generation Fiber Innovations

What if your internet could handle 8 billion video calls at once. Upcoming breakthroughs promise to redefine data mobility. Cutting-edge devices and smarter signal methods are pushing networks to new limits.

Next-Gen Transmitters & Detectors

Modern lasers now fire 200 wavelengths simultaneously—up from just 40 a decade ago. They deliver ~5× the output at ~30% reduced consumption. Combined with graphene-based photoreceivers, they detect even minimal photon levels.

Major innovations encompass:

• Lasers with narrow linewidths cut optical noise by ~90%
• Photonics-integrated circuits shrinking hardware size
• Machine-learning calibration optimizes performance in real time

Coherent Transmission and Multiplexing Techniques

Coherent systems treat light like radio waves, encoding data in its phase and amplitude. This trick boosts capacity 16-fold compared to older on-off signaling. When combined with wavelength-division multiplexing (WDM), single strands carry 800+ data streams.

Technique	Wavelengths	Speed Gain
DWDM	~160	~80 Tbps
OFDM	512	~120 Tbps
SDM	Multi-core	1 Pbps*

*Experimental (NTT, 2023)

These systems integrate smoothly with existing infrastructure. In 2024, Verizon’s coherent deployment doubled bandwidth on existing fiber routes. An engineer remarked: “Repurposing legacy fibers with coherent methods unlocks untapped potential.”

Worldwide Fiber Standards & Guidelines

Ever wondered how your video call stays crystal clear across continents Global standards act as invisible rulebooks, ensuring every piece of the puzzle works perfectly together. Absent these specs, infrastructure would face mismatches and inefficiencies.

Specification	Focus Area	Impact
ITU G.652	Single-mode transmission	Enables 100Gbps+ speeds
IEC 60793-2-50	Mechanical reliability	Ensures 20-year lifespans
ITU G.654	Subsea cables	Prevents saltwater corrosion

Performance Metrics and Quality Assurance

Rigorous validation ensures reliable operations. Key benchmarks include signal loss (under 0.25 dB/km) and tensile strength (minimum 50 Newtons). Manufacturers run 200+ checks before shipping products, from temperature resistance to bend tolerance.

“Our compliance with IEC 61300-3-35 reduced installation errors by 65% last year.”| “Adhering to IEC 61300-3-35 led to a 65% drop in deployment mistakes.”

Verified components and accurate technical data prevent costly mistakes. Technicians rely on uniform color schemes and termination practices to link heterogenous gear flawlessly. This harmony keeps global data flowing without hiccups.

Case Studies: Successful Fiber Optic Implementations

How do cities handle millions of simultaneous video streams without crashing Real-world deployments show how smart planning and advanced cables keep our digital world running smoothly. Let’s explore two groundbreaking projects that reshaped global connectivity.

Urban Deployments and Metro Networks

NYC’s Metro Fiber initiative addressed slow copper infrastructure, which hindered business connectivity by ~40%. They laid 800 mi of micro-trenched fiber beneath sidewalks, steering clear of subways and utilities. Outcomes: Latency fell from ~14 ms to ~2 ms; throughput increased by ~600%.

Issue	Solution	Result
Subsoil crowding	3D mapping for route optimization	~92% quicker rollout
EMI challenges	Armored MC fiber	~99.99% reliability
Budget constraints	PPP funding model	~30% fewer expenses

Subsea and Transcontinental Examples

The MAREA cable—stretching 4,000 miles between Virginia and Spain—handles 160 Tbps across eight fiber pairs. Teams contended with ~10,000 ft depths and marine hazards, deploying ROVs to trench cables into ocean floor. This $160 million project now carries 55% of Europe-North America traffic.

“Subsea systems require 200+ design revisions before deployment. Every meter matters when you’re laying cable across tectonic plates.”| “Over 200 design iterations are typical for undersea cables. Small changes hugely impact viability across plates.”

Differences by deployment scenario:

• City installations prefer bend-insensitive fiber for tight paths
• Subsea systems require titanium-reinforced sheathing
• Isolated sites rely on solar-driven amplifier stations

Either method shows how sound engineering and robust materials revolutionize data transport. From Manhattan’s skyscrapers to Atlantic ocean floors, these networks form the silent backbone of modern life.

Fiber Economics & Growth Potential

What powers the streaming revolution and remote work boom The answer lies in networks that combine upfront investment with long-term savings. While initial deployment costs can reach \$60,000 per mile, these systems deliver unmatched value over decades of service.

Strategic Investment for Scalability

Upgrading to advanced networks cuts operational costs by 40% compared to copper systems. Maintenance expenses drop sharply—no more replacing corroded wires or fighting electromagnetic interference. A 2024 study showed:

Expense Category	Copper-Based	Modern Networks
Deployment	~\$45/m	\$28/meter
Power Consumption	5W per device	1.2W per device
Service Calls	12/year	~2 annually

Global investment trends confirm this shift. Telecom giants plan to spend \$150 billion through 2027 expanding infrastructure. Locale upgrades hit ~300% ROI in 5 years via boosted efficiency and minimized outages.

Navigating Deployment Hurdles

Yet municipalities encounter three primary obstacles:

• Permit processes can extend schedules by ~18 months
• Labor shortages in specialized installation crews
• Public resistance to street excavations

“Our Phoenix deployment took 22 months instead of 14 due to permit bottlenecks. Still, the network boosted local GDP by \$380 million annually.”| “Phoenix’s build required ~22 months, not 14, over permit delays—but delivered ~\$380M/year in GDP uplift.”

Innovative solutions are emerging. Micro-trenches cut surface impact by ~80%; PPP models distribute funding risks. These approaches help communities harness the power of scalable, future-ready systems without breaking budgets.

Innovations and Future Prospects in Data Transmission

Fiber backbones are receiving performance upgrades. Researchers now push boundaries with materials thinner than spider silk and signaling methods that outpace traditional designs. Such progress aims to reduce latency and accommodate future data surges.

Upcoming Fiber Innovations

Hollow-core strands filled with air could slash latency by 30%, according to 2024 trials at MIT. These tubes guide light through vacuum-like channels, reducing signal drag. Simultaneously, multi-core designs pack seven data lanes into one cable—quadrupling current capacity.

Feature	Today’s Specs	2027 Projection
Speed	~100 Tbps	1.2 Pbps
Reach	~70 km	~150 km
Power Demand	0.5 W/device	0.15 W/device

Emerging WDM packs ~400 channels per fiber, versus ~160 currently. This “spectral supercharging” lets networks handle 8K virtual reality streams without breaking stride.

Convergence with 5G/6G Networks

6G networks will lean heavily on upgraded cables to support millimeter-wave frequencies. Trials in Dallas show hybrid systems delivering 10 Gbps wireless speeds when paired with high-capacity backbones.

• 5G small cells need fiber links every 500 feet
• Ground-satellite nodes depend on ultra-low-latency backbones
• Smart factories use real-time data flows for robotic precision

Nokia’s 2023 report says advanced fiber cuts 5G round-trip delay by ~82%. In one expert’s words: “Wireless depends on wired guts—the quicker the spine, the clearer the signals.”

In Summary

The unseen fibers linking our digital lives continue evolving. Material science and engineering leaps have moved us from copper constraints to optical velocity. Today’s networks prove faster isn’t just better—it’s essential for streaming, surgeries, and stock markets alike.

Today’s networks succeed due to clever engineering. Plastic-based protective layers shield delicate glass cores, while global standards ensure seamless compatibility. These innovations slash energy use by 40% compared to older methods, making high-speed access both sustainable and scalable.

Challenges remain, like installation costs and public awareness. Yet economic benefits outweigh hurdles—every $1 invested yields nearly $4 in growth. With 5G proliferation and AI requiring instant data, robust fiber backbones are imperative.

Future endeavors will extend these frontiers. Hollow cores and advanced wavelength methods may render current rates outdated. One thing’s clear: the way we share knowledge will keep evolving, driven by humanity’s endless quest to connect faster, farther, and smarter.
