Timber Framing Construction:Heavy Timber Construction.

Nearly 40 percent of the oldest wooden buildings in the USA use traditional joinery, rather than nails. It’s a clear sign of the durability of timber-frame construction.

Here you’ll see why timber framing offers utility and longevity. With sustainable materials plus classic joinery, it produces half timber framing for residences, agricultural buildings, pavilions, and business spaces.

We’ll cover timber frame construction methods, ranging from old-school mortise-and-tenon to modern CNC and SIP techniques. We outline the history, techniques, materials, design, and construction phases. We’ll also talk about modern upgrades that improve energy performance and durability.

Planning a new home or commercial site with timber framing? This guide helps. Think of it as Timber Framing 101 for clear planning and enduring craftsmanship.

Key Takeaways

• Timber framing construction blends sustainable materials with proven joinery for long-lasting structures.
• Methods span classic mortise-and-tenon through CNC-assisted production.
• Timber frame architecture suits residential, agricultural, and commercial applications.
• Contemporary upgrades like SIPs improve energy performance without losing aesthetic appeal.
• A practical, U.S.-oriented overview of history, materials, design, and build steps.

Timber Framing Defined

Large timbers with pegged joints define timber framing. It’s different from stick-built framing, which uses smaller lumber like 2x4s. The result is a structural skeleton carrying roofs and floors.

It’s known for its long-lasting frames, thanks to precise joinery and craftsmanship. Fewer interior walls and generous open spans are common. It’s prized in both old and new buildings.

How It Works

Fundamentally, timbers are arranged into a rational frame. Wooden pegs lock mortise-and-tenon joints for stability. Loads travel through posts and beams to foundations, reducing partition needs.

Key visual and structural characteristics

Timber framing is known for its big timbers and exposed beams. You’ll see vaulted ceilings and strong trusses. Frames frequently feature 8×8 or larger sections for presence and capacity.

Trusses and post-and-beam bays manage wide spans. Some projects use steel connectors for a mix of old and new. Tight joinery plus pegs delivers strength with controlled movement.

Why the craft endures

It marries strength, longevity, and beauty. Centuries-old frames testify to durability. Responsibly sourced wood supports sustainability goals.

Rising interest stems from aesthetics and ecology. Modern builders mix old techniques with new engineering. Thus they meet current codes and preserve tradition.

Timber Framing Through History

Its lineage crosses continents and millennia. Finds in Ancient Rome show advanced timber joinery. Egyptian and Chinese examples predate the Common Era, proving early sophistication.

In medieval Europe, homes, halls, and barns were built with large oak and ash timbers. Guild-trained makers produced pegged, precise frames. These frames have lasted for hundreds of years, showing the history of timber framing.

Rituals and marks grew with the craft. Scandinavian topping-out (c. 700 AD) honored roof completion. Layout and identity marks traced guild lines and families.

Religious buildings show the craft’s longevity. Jokhang (7th c., Lhasa) stands among the oldest surviving frames. They unite cultural meaning with structural longevity.

The Industrial Revolution brought changes. Mechanization enabled balloon/platform systems. These methods were cheaper and faster, making timber framing less common in homes.

The 1970s sparked a revival. This was due to environmental concerns and a love for craftsmanship. Now it thrives in custom homes, restorations, and premium builds. Contemporary teams pair tradition and engineering to sustain the craft.

The story of timber framing spans ancient ingenuity, medieval mastery, ritual practice, and modern resurgence. Every period contributed techniques and ideals sustaining its appeal.

The New Era of Timber Frames

In the 1970s, people wanted simpler, more natural homes. This led to a renewed interest in timber buildings. Alongside came methods that improve performance and durability.

Environmentalism plus craft revival fueled adoption. Wood’s renewability and carbon storage resonated. This move made timber framing a key part of green building discussions.

Contemporary tools and hybrid methods

New tools like CNC routers and CAD software have improved timber framing. Precision cutting preserves classic joints. Prefabrication and kits reduce on-site work and waste. Hybrid methods combine timber frames with other materials for faster assembly and more options.

Performance upgrades and energy efficiency

Advances in insulation and engineered timbers have improved timber frames. Movement drops while durability rises. Modern timber framing now combines old aesthetics with high efficiency, thanks to innovations in insulation and HVAC systems.

Old-world craft plus modern engineering define today’s timber frames. This approach creates resilient, efficient buildings. They meet today’s codes and expectations while honoring timber framing’s traditions.

Where Timber Frames Shine

Timber framing is used in many building types. It’s chosen for its beauty, large spans, and clear structure. Here are some common uses and what makes each type stand out.

Homes & Cabins

Timber frame homes have open layouts, exposed beams, and high ceilings. They often have big windows that let in lots of light. Interiors feel bright, warm, and inviting.

Builders mix timber framing with SIPs or regular walls to meet energy standards. Owners value beauty, longevity, and spatial openness.

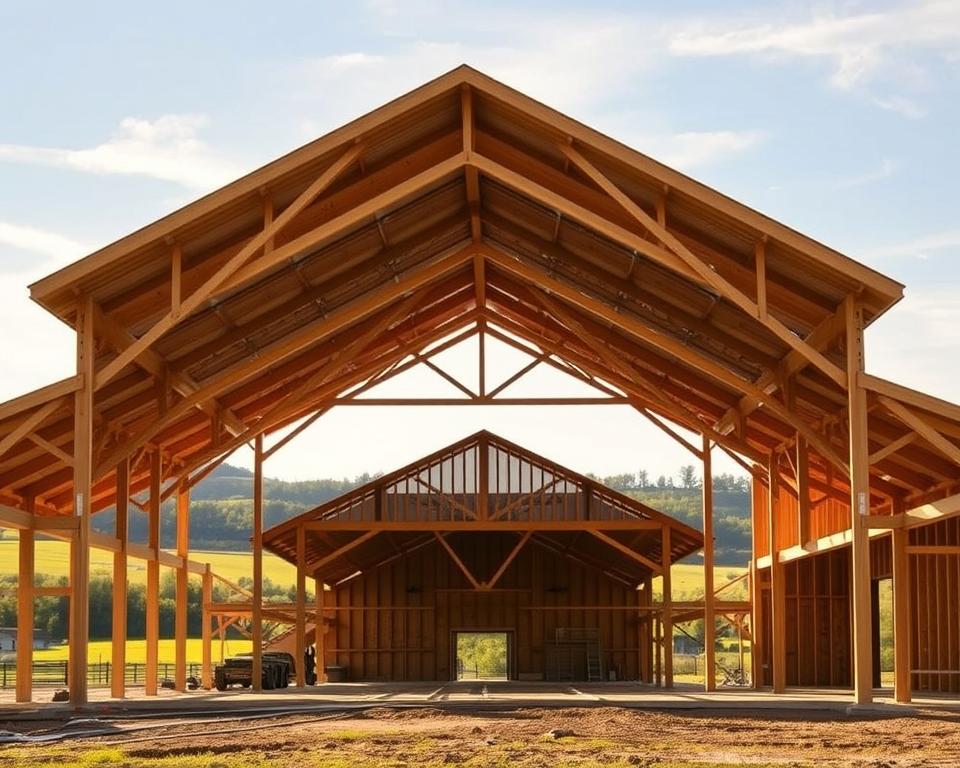

Barns & Agricultural Buildings

Barn frames create unobstructed storage and stock areas. They use heavy posts and beams to support wide spans without many supports.

These buildings are strong and easy to fix. Many choose to use old timbers for their authenticity and strength in farm settings.

Commercial and civic uses

Pavilions, breweries, churches, and halls suit timber framing. It excels where clear spans and expressed structure matter. Arched and sculptural trusses enhance character.

Design teams use timber framing to create lasting public spaces. These spaces are efficient and feel human-sized. Adaptive reuse highlights original frames.

Variants & Hybrids

A-frame timber construction is perfect for steep-roofed, simple buildings like cabins. Log-and-timber hybrids combine log walls with frames.

Half-timbered buildings have exposed wood on the outside and masonry or plaster inside. Timber with stone foundations offer a mix of old and new. These examples show timber framing’s versatility, from simple to elegant.

How Frames Come Together

The craft blends engineering with artistry. Joinery choices match scale and function. Below are key methods and their modern counterparts.

Mortise and tenon

Mortise and tenon joinery is key in many historic frames. A cut mortise fits a matching tenon. Pegs lock joints, avoiding metal fasteners. Builders used broadaxes, adzes, and draw knives to make these joints by hand.

Today CNC equipment produces accurate joints. Labeled parts streamline raising. Strength remains while labor demands drop.

Post-and-Beam vs. Pegged

Post-and-beam relies on large load-bearing members. Steel plates/bolts are common. This makes building faster and easier for contractors used to modern methods.

Traditional pegged joints need a lot of carpentry skill. They deliver continuous timber aesthetics and tight geometry. The choice depends on budget, time, and desired look.

Common truss types

Trusses define spans and volumes. The King Post truss is common for small to medium spans. A central post links the ridge to the tie beam, making it clear and cost-effective.

Hammer Beam trusses create grand spans in halls and churches. Short beams let builders span wide without long rafters. Bowstring/arched ribs improve long-span grace.

Fabrication and assembly

Hand work honors heritage. CNC adds repeatable accuracy. Prefabrication and labeled parts make raising buildings efficient and safe. They reveal evolution without losing core values.

Materials & Species

Material choices are critical. It affects strength, looks, and how long they last. Quality timber and the right materials keep structures stable for years. Below: species, grading/drying, and complementary materials.

Typical Species

Douglas fir offers strength and straight grain. It’s easy to find in North America. Oak and ash are chosen for their durability and classic look. Chestnut/pine appear in European work and restorations.

Builders often use Douglas fir for main parts and oak or ash for visible, worn areas. Mixed species balance budget, aesthetics, and capacity.

Grading/Drying/Milling

Proper grade and moisture enable tight joinery. Use #1 grade timbers for main parts to avoid knots. Rough-sawn pieces can add character if they meet structural standards.

Controlled drying is crucial. Air-drying or kiln-drying reduces moisture. Mill timbers to final size after drying to avoid warping.

Favor FOHC/avoid heart-center when feasible. Heart-center lumber can split and weaken connections over time.

Complementary materials

J-grade T&G 2×6 performs well for roof decks. Structural insulated panels (SIPs) are good for timber frames needing high thermal performance.

Stone or brick foundations are durable and match traditional looks. Steel hardware supports hybrid performance.

Finish options include clear/semi-transparent, stains, and fire treatments. Wolf Lake Timber Works offers #1 grade Douglas fir and J-grade decking, showing modern sourcing.

Spec Checklist

• Specify species for each member: Douglas fir for main beams, oak for high-wear areas.
• Call for #1 grade; allow rough-sawn by appearance zones.
• Confirm timber grading and drying records before fabrication.
• Choose complementary materials for thermal and structural performance: SIPs, J-grade T&G, stone foundations, or steel connectors as needed.

Design Considerations for Timber Frame Architecture

Upfront planning is essential. Early decisions on where to place posts and beams shape rooms and guide forces through the structure. Balance aesthetics and function for coherent performance.

Structural layout and load paths

Plan the timber frame layout before finalizing floor plans. Place posts, beams, and trusses to direct roof and floor loads to foundations. Locate piers early for point loads.

Record load transfer diagrams early. Trace rafters→purlins→beams→footings. Clear diagrams help avoid surprises during engineering and construction.

Interior & Sightlines

Expose members as focal elements. Align joints with views and openings. Vaulted ceilings and large trusses add character and influence light and sound.

Plan mechanical systems to fit without hiding timbers. Employ chases/soffits to keep the frame visible.

Docs & Engineering

Create detailed drawings showing beam sizes, joinery, and connections. Stamped engineering is needed for permits in most places. Ensure calcs match assumed loads and details.

Prefabrication benefits from labeled parts and precise drawings. It improves speed, reduces waste, and aids assembly fidelity.

From Plan to Build

Having a clear plan is key for smooth timber projects. Start with architectural drawings and structural calculations. Engage a heavy-timber engineer early.

Choose between traditional joinery or a post-and-beam hybrid before applying for permits. It affects schedule, details, and permitting scope.

Preconstruction

Create full construction documents that detail loads, joinery, and connections. Engineers size members and specify hardware. File for permits with the final set.

Be prepared to discuss fire ratings, egress, and insulation strategies. Front-loaded collaboration limits changes and delays.

Fabrication and raising the frame

Fabrication happens in a shop where timber is selected, milled, or CNC cut. Douglas fir is a common choice for its strength and workability. Pre-fit and label members for reliable assembly.

Frames are raised in sequenced lifts. Smaller homes may use a crane and contractor crew. Larger projects can be like traditional barn-raising, speeding up assembly. Kits cut labor while preserving craft character.

Finishing and integration with modern systems

After the frame is up, finish the building envelope with materials like SIPs, wood siding, and roofing. Route plumbing, electrical, and HVAC with care to protect timbers and preserve the look.

Apply protective coatings and fire-retardant treatments as needed. Commissioning verifies mechanical performance and comfort.

Practical advice: keep a tight schedule, prefer proven species like Douglas fir, and consider timber frame kits for a streamlined build. Good communication between designer, fabricator, and contractor prevents costly delays during raising and finishing stages.

Benefits & Value

Timber framing is great for the environment, strong, and cost-effective. Renewable wood helps lower embodied carbon. Better envelopes improve operational efficiency.

Sustainability

Wood absorbs carbon as it grows. Using wood from certified forests and reclaimed beams lowers emissions. Fabrication efficiencies reduce waste streams.

Service Life

Big members and tight joints deliver longevity. They can endure for centuries. Moisture management and checks maintain performance.

Cost considerations and value

Timber framing costs more upfront due to the size of the timbers and skilled labor. But, it saves money in the long run. Lower energy, durable structure, and resale appeal support ROI.

Here’s a quick comparison to help you decide.

Timber framing also has social and health benefits. Wood interiors feel warm and calming. Wood is safe and improves air quality. Plus, building events foster community and preserve traditions.

Managing Risks

Knowing the pitfalls keeps projects on track. This guide covers common issues and fixes to keep projects on track and buildings strong.

Finding Craft

Traditional mortise-and-tenon joinery needs skilled hands. Finding skilled timber framers can be hard in many places. Kits/CNC enhance feasibility when skills are scarce.

Post-and-beam hybrids with steel connectors need less on-site carpentry. Apprenticeships help grow capacity.

Wood Behavior

Wood reacts to humidity, a big problem in timber framing. Dry stock limits differential movement.

Designs must include flashing at key points and stable foundations. Sealed interfaces and balanced ventilation control moisture. This keeps connections stable.

Codes & Engineering

Permits typically require engineering. Early engineer involvement prevents hold-ups.

Address fire/egress/seismic/wind early. Knowing timber frame codes helps avoid costly changes later.

Practical material and process choices

Choose durable species like Douglas fir or white oak. Use #1 grade, free-of-heart-center timbers to reduce defects. Pre-fit fabrication maintains tolerances and speed.

Using timber frames with modern envelope systems like SIPs enhances energy efficiency. Schedule maintenance to protect finishes and joints.

Quick Actions

• Secure craft capacity or choose CNC/kit paths.
• Lock in drying method/grade to control movement.
• Engage permitting/engineering early.
• Select durable species + high-performance envelopes.

Wrapping Up

Heavy-timber construction unites strength and aesthetics. Expressed structure and special joints define the frame. This makes timber frame homes, barns, and buildings stand out in the United States.

Ancient roots continue through living traditions. Today’s design merges heritage with modern tools. This results in better energy efficiency and keeps the beauty of sustainable timber framing alive.

Materials matter: consider fir or eastern white pine. Specify #1 grade with controlled drying/milling. That choice limits movement and moisture risks.

Plan thoroughly with design + engineering. Then, fabricate with precision, raise the frame carefully, and maintain it well. Such care protects joints and finishes.

If you’re planning a project, talk to experienced timber frame experts. Evaluate kits and long-term value. It delivers sustainable materials and enduring beauty for strong, environmentally friendly buildings.
